Product Features:
1. Centralized automatic lubrication system.
2. Tool automatic compensation system.
3. Automatic backlash preloading mechanism.
4. High rigidity design.
5. Taiwan HIWIN ball screw and linear guide.
6. Taiwan precise spiral rack transmission.
7. Italy HSD auto tool changing high frequency spindle.
8. Japan YASKAWA servo motor and driver.

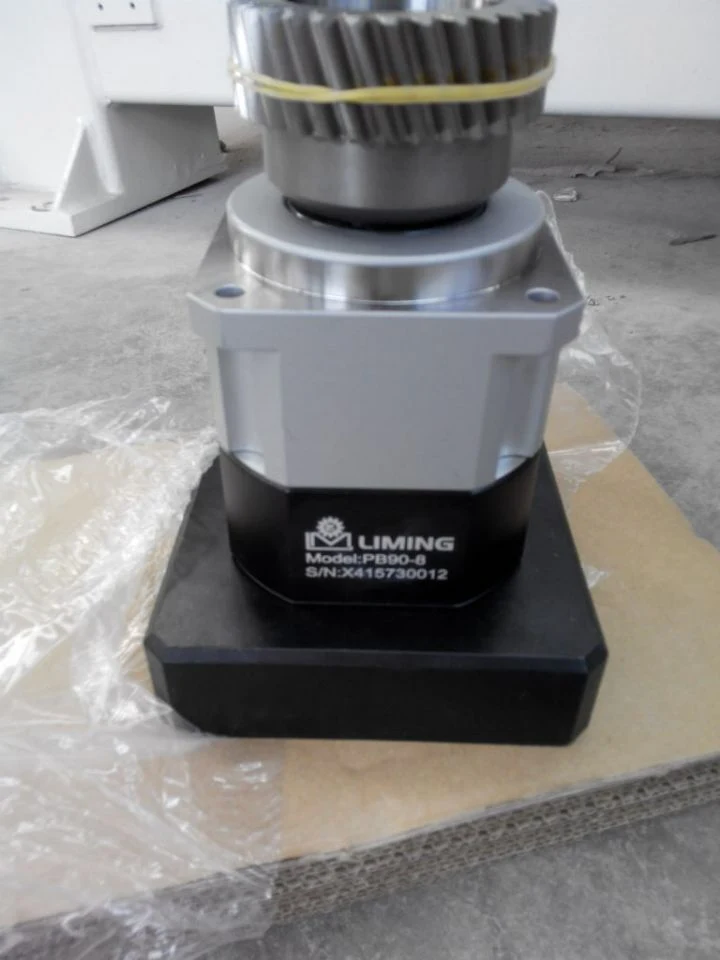

9. Planetary type reducer.
10. Linear type plastic steel changer with 8 tools.
11. Taiwan SYNTEC control system.
Applicable Applications:
1.Suitable for compound processing pattern milling, sawing and drilling. It belongs to the price and high-efficiency machining equipment.
2.Slab countertops can do the whole board adsorption processing directly without the preparation of material cutting.
3.The machine's drilling pattern is multi-function drilling. It is equipped with any arrangement combination of vertical drilling, side drilling, single drilling and group drilling, etc.
4.Suitable for processing display counters, artifical stone flow management units, petrochemical PF filter plates, headboard, insulation plates, styrofoam model, yacht bedroom, OA office desktop.
Technical Parameter:
| Model | UA-48D | Name | CNC Machining Center |
| Standard Configuration | |||
| Item | Specification | Remarks | |
| Table size (mm) | 3050X1525 | ||
| Traveling size X-Y-Z (mm) | 3150X1625X300 | ||
| Max. working piece height(mm) | 200 | ||
| Weight (Kg) | 3500 | ||
| Systemic resolution (mm) | ±0.0025 | ||
| Repositioning resolution (mm) | ±0.02 | ||
| Max. running speed (m/min) | 80 | ||
| Max. cutting speed(m/min) | 20 | ||
| Working voltage (V/PH/HZ) | 380/3/50 | ||
| Cabinet | Big cabinet with single door+heat exchanging cooling+CE | Big cabinet with double doors if add pneumatic drill | |
| Spindle (KW) | 9.0(ISO30) | HSD air cooling | |
| Spindle Speed (r/min) | 24000 | ||
| Working air pressure (MPa) | 0.6 | ||
| Table design | Pure adsorption one zone | Double layer 30mm | |
| Vacuum Pump | 5.5KW/160m3/tongyou pump | Including non-return valve and filter | |
| Positioning Cylinder | 3 | ||
| Tool Magazine | disc plastic steel 8 tools | ||
| Driving system | Servo | YASKAWA | |
| Software | Router-8(France) China CAM(England)-for drilling | ||
| Pneumatic drill | 5V/7V/9V/7V2H/9V3H1S/9V2H2S etc | FAM | |
| Optional | |||
| Item | Specification | Remarks | |
| Spindle(KW) | 9.0(HSK-F63) 12(ISO-30,HSK-F63) | HSD air cooling | |
| Table Design | Pure adsorption 2 zones(2 stations working ) | Double layer30mm | |
| Vacuum Pump | 4KW/140m3/h Becker | Including non-return valve and filter | |
| Driving System | Servo | SIEMENS | |
| Operation System | Syntec 10A+PC | ||
| Tool magazine | Disc plastic steel 12 tools | ||
| Protection Device | Protection fence/safe carpet/laser light curtain | ||
| Model | Table Size(mm) | Travelling Size X-Y-Z(mm) |
| UA-48 | 2440X1220 | 2540X1320X300 |
| UA-410 | 3050X1220 | 3150X1325X300 |
| UA-412 | 3660X1220 | 3760X1320X300 |
| UA-416 | 4880X1220 | 4980X1320X300 |
| UA-58 | 2440X1525 | 2540X1625X300 |
| UA-512 | 3660X1525 | 3760X1625X300 |
| UA-516 | 4880X1525 | 4980X1625X300 |
| UA-68 | 2440X1830 | 2540X1930X300 |
| UA-610 | 3050X1830 | 3150X1930X300 |
| UA-612 | 3660X1830 | 3760X1930X300 |
| UA-616 | 4880X1830 | 4980X1930X300 |
