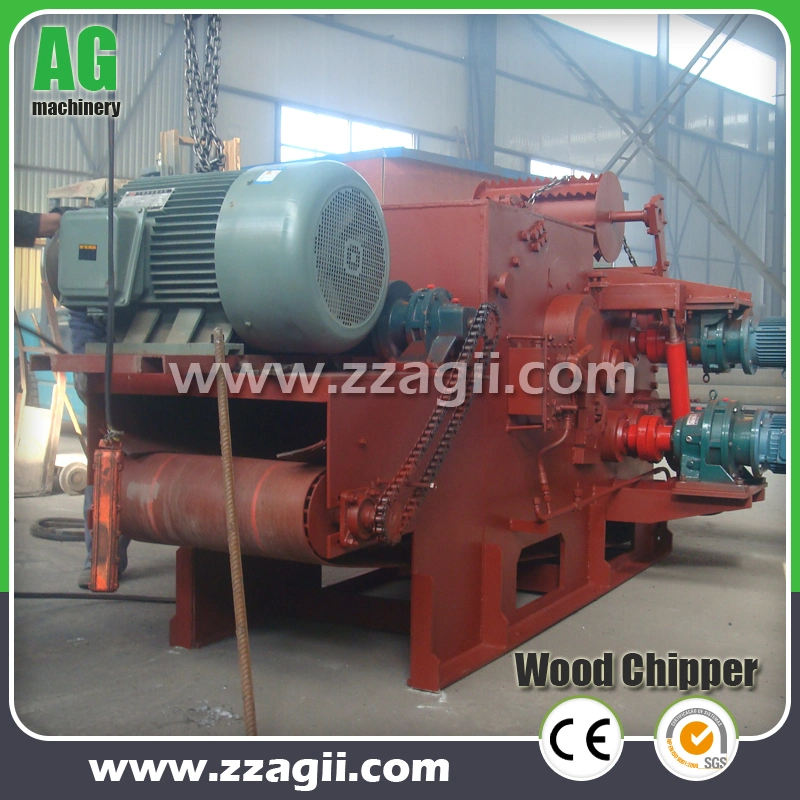

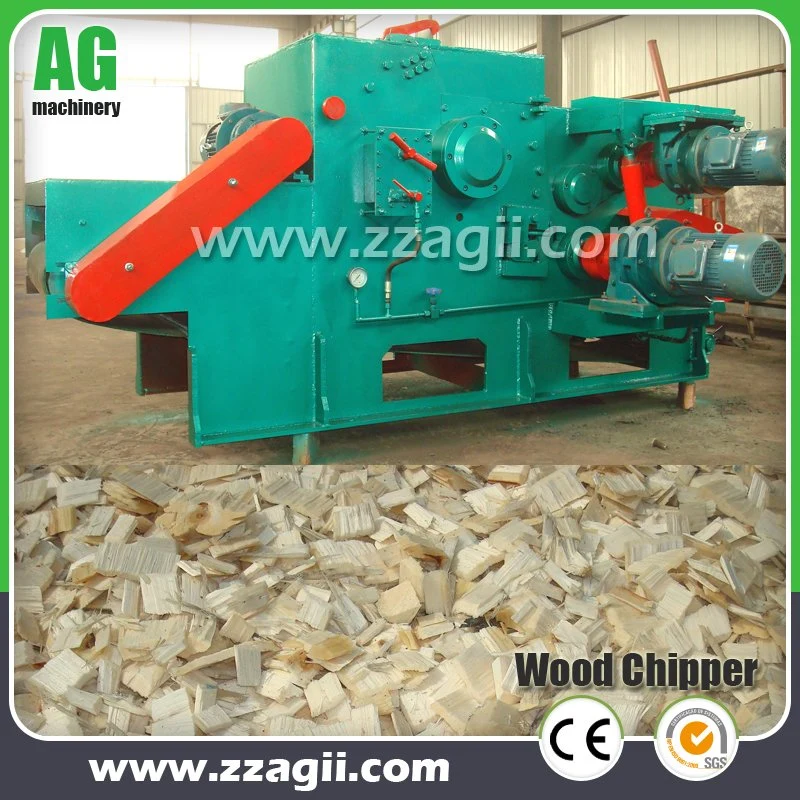

drum wood chipper shredder machine
Product Description
The drum chipper is the special equipment for producing the perfect chips. It is used in paper plants, particle board plants,
fiber-broad plants, chip production and export bases. By which, the logs and small wood are cut into high quality with even
length and uniform chip thickness.
Technical Parameters:
Features:
Application:
Drum wood chipper machine is the production of wood and special equipment, this product is widely used in the particleboard
plant, medium,high density fiberboard plant, plant straw, biomass power plant, wood chip plant and other industrial and
manufactures in the production of thepreferred stock preparation apparatus.
Structure and Operating principle:
The drum wood chipper machine is composed of a machine body, a knife roller, upper and lower feed roller, conveyor belts,
hydraulic system components.
Product Description
The drum chipper is the special equipment for producing the perfect chips. It is used in paper plants, particle board plants,
fiber-broad plants, chip production and export bases. By which, the logs and small wood are cut into high quality with even
length and uniform chip thickness.
Technical Parameters:
| Model | BX-313 | BX-315 | BX-316 | BX-318 |
| Main Power | 30kw | 45 kw | 55 kw | 110 kw |
| Capacity | 2-3 t/h | 3-5 t/h | 8-12 t/h | 15-25 t/h |
| Q'ty of flying blades | 2 pcs | 2 pcs | 2 pcs | 2 pcs |
| Opener size | 300*200 mm | 400*170mm | 540*220mm | 680*270mm |
| Input max diameter | 150mm | 150mm | 200mm | 250mm |
| Size of wood chips | 20-40 mm | 20-40 mm | 20-40 mm | 20-40 mm |
| Dimension of machine | 2.6x1.6 x1.4(m) | 2.6x1.8 x1.4(m) | 3.1x2 x1.5(m) | 3.5x2.18 x1.8(m) |
| Weight of machine | 2200kg | 3380kg | 4680kg | 8320kg |
| Feeding belt conveyor | 4x0.3(m) | 4x0.4(m) | 6x0.55(m) | 6x0.7(m) |
| Discharging belt conveyor | 10x0.4(m) | 10x0.5(m) | 10x0.6(m) | 10x0.8(m) |
Features:
1.This advanced product structure,
2.High cutting quality,
3.Raw material adaptability,
4.Convenient operation and repair.
2.High cutting quality,
3.Raw material adaptability,
4.Convenient operation and repair.
Application:
Drum wood chipper machine is the production of wood and special equipment, this product is widely used in the particleboard
plant, medium,high density fiberboard plant, plant straw, biomass power plant, wood chip plant and other industrial and
manufactures in the production of thepreferred stock preparation apparatus.
Structure and Operating principle:
The drum wood chipper machine is composed of a machine body, a knife roller, upper and lower feed roller, conveyor belts,
hydraulic system components.
